| Brand Name: | SUBA |
| Model Number: | SUBA-30100 |
| MOQ: | 1 |
| Price: | communication |
| Delivery Time: | 5-8 work days |
| Payment Terms: | ,T/T,L/C |
| Workpiece Size | Large |
| Axis | 4 |
| Size | 3000*10000*200mm |
| Control System | CNC |
| Accuracy | High |
| Materials Processed | Composite panels, RV cabin panels, refrigerated vehicle cabin panels, extruded panels, wood panels, and aluminum panels |

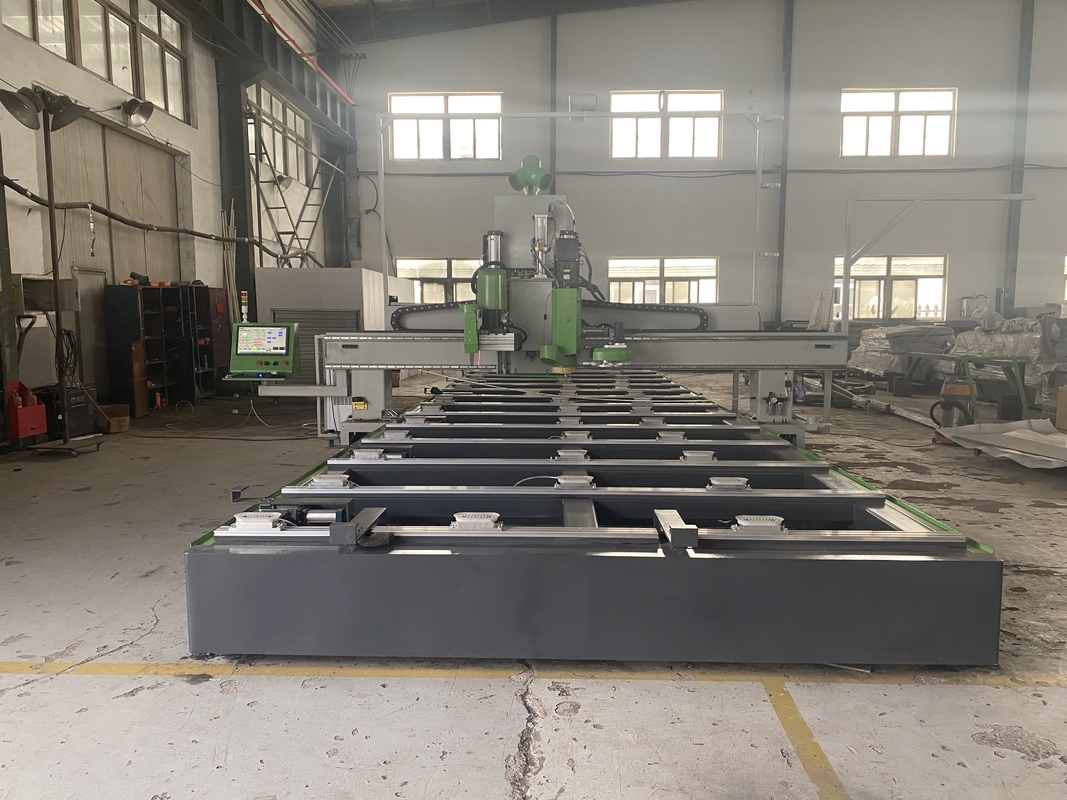

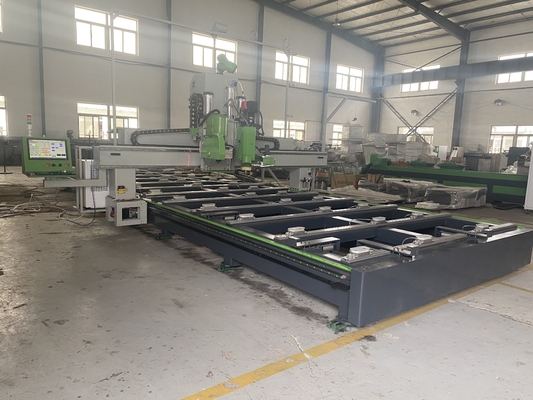

The large panel material processing center is an intelligent CNC processing device specially designed by SpeedMaster according to the processing needs of many customers.
The workbench features:
This processing center is ideal for working with aluminum plate, glass fiber, plastic, insulating materials, and composite materials for sawing, engraving, and drilling applications. Key industries include:
| Effective Workbench Size | 3000*10000*200mm (customizable) |
| Z-axis Travel | 200mm |
| Workbench Surface | Vacuum suction with T-groove table (suction and clamping dual-use), can be zoned according to processed board size |

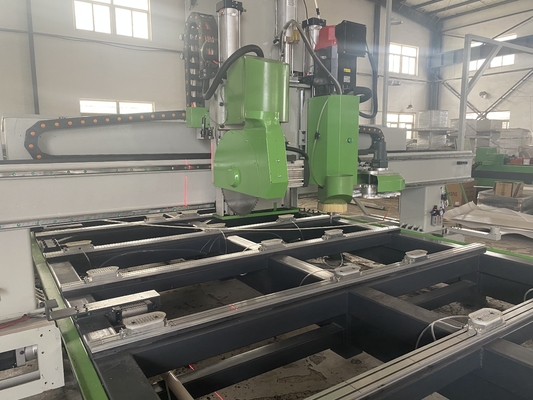

| Spindle Motor | 7.5KW pneumatic tool change spindle for heavy cutting |
| Tool Magazine | 8 disk tool magazine with automatic tool change in program |
| Spindle Speed | 0-12000 rpm/min |
| Saw Motor | Five-axis control rotary saw (7.5KW) |
| Transmission System | Z-axis: screw driven; X/Y axes: rack and pinion driven |

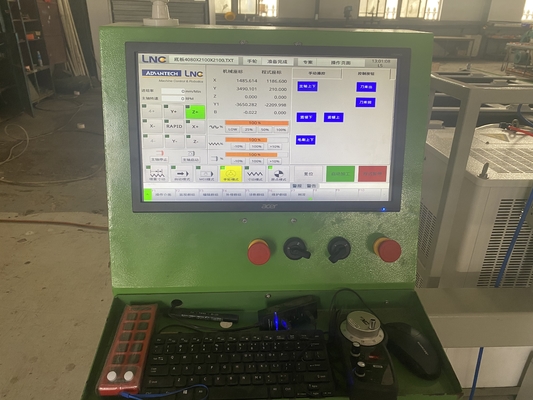

| Control System | High-End Machining Center Dedicated System |
| Processing Speed | 8m/min to 45m/min (varies based on tools and materials) |
| Distribution Cabinet | Follow-up distribution cabinet for convenient operation |
| Software Compatibility | Precision Engraving/WenTai/UG/TYPE3/MASTERCAM and other G-code formats |
| Working Voltage | Customized to customer location requirements |
|
