Large CNC Machining Center
Created with Pixso. Processing center for insulated composite panel car body panels

Processing center for insulated composite panel car body panels

Brand Name: SUBA
Model Number: SUBA-30125
MOQ: 1
Price: communication
Delivery Time: 5-8 work days
Payment Terms: ,T/T,L/C
Detail Information
Place of Origin:
Qingdao, China
Certification:
CE
Workpiece Size:
Large
Axis:
4
Size:
3000*12500*200mm
Control System:
CNC
Accuracy:
High
Materials Processed:
Composite Panels, RV Cabin Panels, Refrigerated Vehicle Cabin Panels, Extruded Panels, Wood Panels, And Aluminum Panels
Packaging Details:
Wooden box packaging
Supply Ability:
100set
Highlight:

CNC machining center for composite panels

,

insulated car body panel processing center

,

large CNC machine with warranty

Product Description
Processing Center for Insulated Composite Panel Car Body Panels
Product Attributes
Attribute Value
Workpiece Size Large
Axis 4
Size 3000*12500*200mm
Control System CNC
Accuracy High
Materials processed Composite panels, RV cabin panels, refrigerated vehicle cabin panels, extruded panels, wood panels, and aluminum panels
Product Description

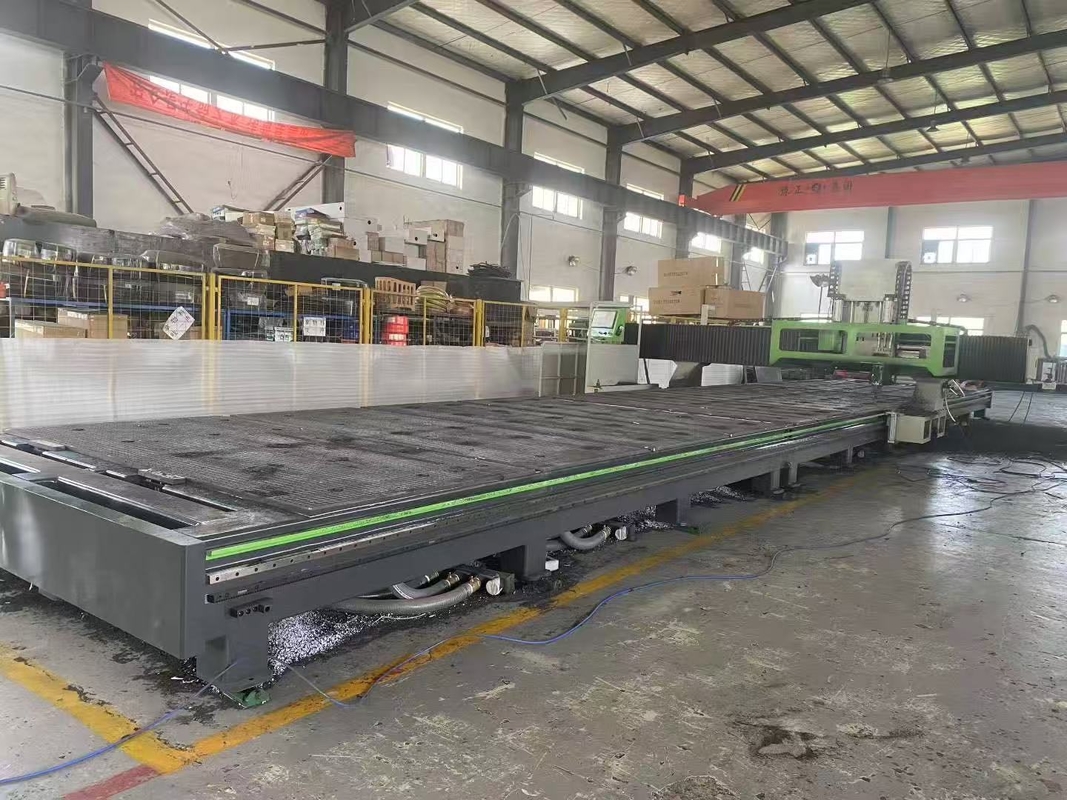

The large panel material processing center is an intelligent CNC processing device specially designed by SpeedMaster according to the processing needs of many customers.

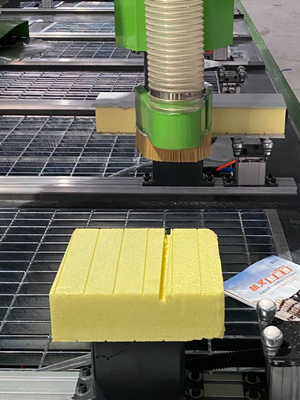

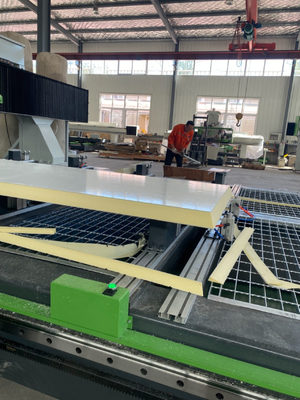

The workbench is equipped with a vacuum suction tabletop, the tabletop is made of phenolic resin board, which ensures the flatness and hardness of the tabletop, and is more convenient for the board fixation. There is a layer of steel plate on the lower bed to ensure the flexibility of the workbench and prevent it from deforming over time. The vacuum suction workbench uses efficient grid vacuum layout, so that any part of the workbench can quickly adsorb the workpiece.

Applicable Industries

It is used for aluminum plate, glass fiber, plastic, insulating materials, composite materials, sawing, engraving, drilling, etc. It is suitable for:

  • Aerospace
  • Rail transportation automation equipment aluminum parts
  • Vehicle interior
  • Yachts and ships
  • Special vehicles (refrigerated vehicles, motorhomes, modified vehicles, vaccine vehicles, etc.)
  • Anti-corrosion equipment
  • Military equipment
  • Medical industry
  • Instrumentation
  • New energy
Technical Specifications
Effective workbench size: 3000*125000*200mm (Can be customized)
Z-axis travel: 200mm
Workbench surface: Vacuum suction with T-groove table (suction and clamping dual-use), can be zoned according to the size of the processed board.
Spindle motor: 7.5KW pneumatic tool change spindle, suitable for heavy cutting.
Tool magazine: 8 disk tool magazine (automatic tool change in program)
Spindle speed: 0-12000 rpm/min
Saw motor: Five-axis control rotary saw (7.5KW)
Transmission system: The Z-axis is driven by a screw, while the X/Y axes are driven by rack and pinion
Control system: High-End Machining Center Dedicated System
Processing speed: 8m/min to 45m/min (processing speed is determined based on the tools and materials used by the customer)
Distribution Cabinet: Follow-up distribution cabinet, convenient for workers to operate.
Software: Precision Engraving/WenTai/UG/TYPE3/MASTERCAM and other internationally G-code
Working voltage: Produce according to the voltage of the customer's location.
Processing center for insulated composite panel car body panels 0 Processing center for insulated composite panel car body panels 1
